B72660M0170K072 | TDK (EPCOS)
Varistor, SMD 4032, VV 27 V, 250 A, 22 V (DC), 17 V (AC), ±10 %, 0.02 VA (AC), 1.1 J, B72660M0170K072
Order No.: 82E6913
EAN: 4099879995094
MPN:
B72660M0170K072
B72660M170K72
Unit Price (€ / pc.)
0.8211 € *
Standard delivery time from the manufacturer is: 8 Weeks
Metal oxide varistor, B72660M0170K072, EPCOS
Features
- SMD plastic package
- RoHS-compatible
- Suitable for lead-free soldering
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 22 V | |
| max. Surge current, transient (8/20 µs) | 250 A | |
| Energy absorption | 1.1 J | |
| Rated voltage (AC) | 17 V | |
| Tolerance | ±10 % | |
| Power dissipation | 0.02 W | |

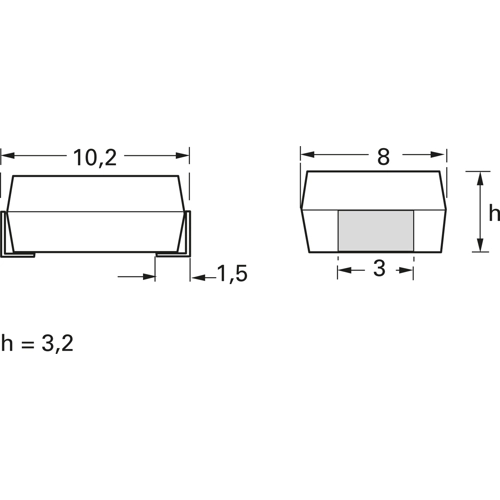

| Design | SMD 4032 | |
| Varistor Voltage Type | 27 V | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332900 |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
