B72650M1300K072 | TDK (EPCOS)
Varistor, SMD 3225, VV 47 V, 100 A, 34 V (DC), 30 V (AC), ±10 %, 0.01 VA (AC), 0.9 J, B72650M1300K072
Order No.: 82E6904
EAN: 4099879995025
MPN:
B72650M1300K072
B72650M1300K72
Unit Price (€ / pc.)
0.6783 € *
Standard delivery time from the manufacturer is: 8 Weeks

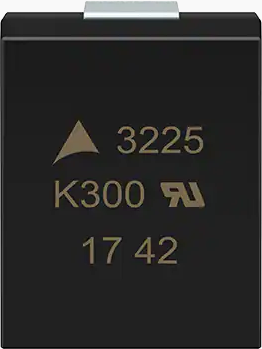

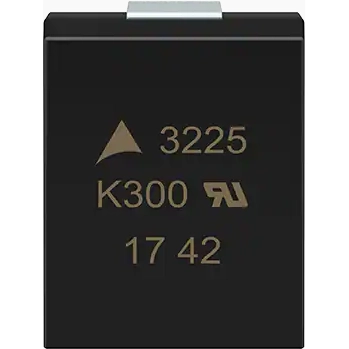

Metal oxide varistor, B72650M1300K072, EPCOS
Features
- SMD plastic package
- RoHS-compatible
- Suitable for lead-free soldering
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 34 V | |
| max. Surge current, transient (8/20 µs) | 100 A | |
| Energy absorption | 0.9 J | |
| Rated voltage (AC) | 30 V | |
| Tolerance | ±10 % | |
| Power dissipation | 0.01 W | |
| Design | SMD 3225 | |
| Varistor Voltage Type | 47 V | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332900 |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
