B72650M0950K072 | TDK (EPCOS)
Varistor, SMD 3225, VV 150 V, 400 A, 125 V (DC), 95 V (AC), ±10 %, 0.1 VA (AC), 3.4 J, B72650M0950K072
Order No.: 82E4322
EAN: 4099879989307
MPN:
B72650M0950K072
B72650M950K72
Unit Price (€ / pc.)
0.6783 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
SMD metal oxide varistors (VDRs), type TDK/Epcos B72650M..K72.

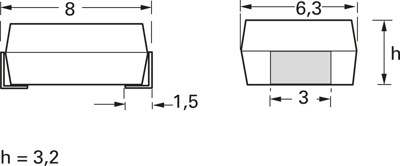

Chip package size 3225, molded, good soldering properties
Technical specifications
| Rated voltage (DC) | 125 V | |
| Varistor Voltage Type | 150 V | |
| Energy absorption | 3.4 J | |
| Rated voltage (AC) | 95 V | |
| Design | SMD 3225 | |
| min. operating temperature | -40 °C | |
| Tolerance | ±10 % | |
| max. operating temperature | 85 °C | |
| max. Surge current, transient (8/20 µs) | 400 A | |
| Standard number | UL, IEC, CECC | |
| Power dissipation | 0.1 W |
Download
Logistics
| Country of origin | SI |
| Customs tariff number | 85332900 |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
