B72650M0300K072 | TDK (EPCOS)
Varistor, SMD 3225, VV 47 V, 100 A, 38 V (DC), 30 V (AC), ±10 %, 0.01 VA (AC), 0.9 J, B72650M0300K072
Unit Price (€ / pc.)
1.2376 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
12.38 € *
Price list
Quantity
Price per unit*
10 pcs.
1.2376 €
50 pcs.
1.0948 €
250 pcs.
0.9401 €
1000 pcs.
0.8211 €
2000 pcs.
0.7616 €
*incl. VAT plus shipping costs
Subject to prior sale

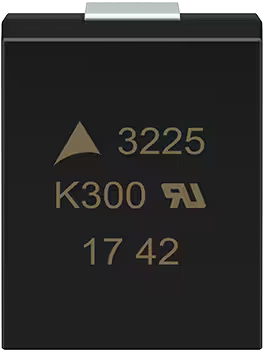

SMD metal oxide varistors (VDRs), type TDK/Epcos B72650M..K72.

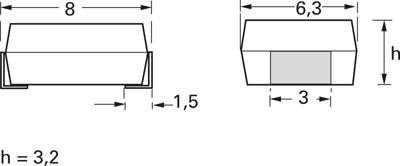

Chip package size 3225, molded, good soldering properties
Technical specifications
| max. operating temperature | 85 °C | |
| Design | SMD 3225 | |
| Power dissipation | 0.01 W | |
| Varistor Voltage Type | 47 V | |
| Rated voltage (DC) | 38 V | |
| Rated voltage (AC) | 30 V | |
| Tolerance | ±10 % | |
| Standard number | UL, IEC, CECC | |
| max. Surge current, transient (8/20 µs) | 100 A | |
| min. operating temperature | -40 °C | |
| Energy absorption | 0.9 J |
Download
Logistics
| Customs tariff number | 85332900 |
| Country of origin | SI |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
