B72650M0271K072 | TDK (EPCOS)
Varistor, SMD 3225, VV 430 V, 400 A, 350 V (DC), 275 V (AC), ±10 %, 0.1 VA (AC), 8.6 J, B72650M0271K072
Unit Price (€ / pc.)
1.1567 € *
Available: 3,813 pcs.
Total Price:
1.16 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1567 €
10 pcs.
0.6402 €
100 pcs.
0.5141 €
500 pcs.
0.4201 €
1000 pcs.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale

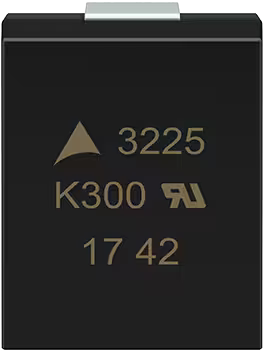

SMD metal oxide varistors (VDRs), type TDK/Epcos B72650M..K72.

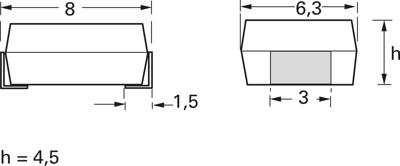

Chip package size 3225, molded, good soldering properties
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (AC) | 275 V | |
| Rated voltage (DC) | 350 V | |
| Design | SMD 3225 | |
| Power dissipation | 0.1 W | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Energy absorption | 8.6 J | |
| Varistor Voltage Type | 430 V | |
| Tolerance | ±10 % | |
| max. Surge current, transient (8/20 µs) | 400 A | |
| Standard number | UL, IEC, CECC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SI |
| Customs tariff number | 85332900 |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
