B72580E0140K062 | TDK (EPCOS)

Varistor, SMD 1812, VV 22 V, 800 A, 18 V (DC), 14 V (AC), ±10 %, 0.015 VA (AC), 2.3 J, B72580E0140K062

Order No.: 82E6778
EAN: 4099879994738
MPN:
B72580E0140K062
B72580E140K62
TDK (EPCOS)
B72580E0140K062 TDK (EPCOS) Varistors

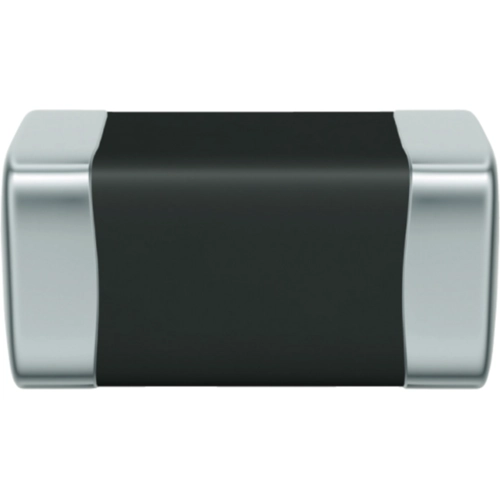

Image may differ
Print
Key Specification:
Design SMD 1812
Varistor Voltage Type 22 V
max. Surge current, transient (8/20 µs) 800 A
Rated voltage (DC) 18 V
Rated voltage (AC) 14 V
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.8449 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
1,267.35 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1500 pcs.
0.8449 €
Description
Technical specifications
Download
Logistics
Compliance

SMD multilayer varistor, B72580E0140K062, EPCOS

Features

  • High energy absorption capability
  • Low leakage current
  • Long-term ESD stability
  • Bidirectional protection
  • Qualification based on AEC-Q200
  • RoHS-compatible, lead-free

Applications

  • Transient overvoltage protection in automotive applications: engine management, airbag, control units, electrohydraulic brake, ABS/ESP, sunroof
  • Load-dump protection
  • Jump-start protection
Technical specifications
Rated voltage (DC) 18 V
Varistor Voltage Type 22 V
Energy absorption 2.3 J
Rated voltage (AC) 14 V
Design SMD 1812
min. operating temperature -55 °C
Tolerance ±10 %
max. operating temperature 125 °C
max. Surge current, transient (8/20 µs) 800 A
Power dissipation 0.015 W
Articles of same specification 0
Logistics
Country of origin HR
Customs tariff number 85332900
Original Packaging Reel with 1,500 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
