B72542V6300K062 | TDK (EPCOS)

Varistor, SMD 2220, VV 47 V, 6000 A, 38 V (DC), 30 V (AC), ±10 %, 0.02 VA (AC), 15 J, B72542V6300K062

Order No.: 76D9907
EAN: 4099879987563
MPN:
B72542V6300K062
B72542V6300K62
TDK (EPCOS)
B72542V6300K062 TDK (EPCOS) Varistors
Image may differ
Print
Key Specification:
Design SMD 2220
Varistor Voltage Type 47 V
max. Surge current, transient (8/20 µs) 6000 A
Rated voltage (DC) 38 V
Rated voltage (AC) 30 V
Download Datasheet Technical specifications
Unit Price (€ / pc.)
2.1658 € *
Available: 0 pcs.
Leadtime: 999 Weeks **
Total Price:
1,299.48 € *
*incl. VAT plus shipping costs
**Subject to prior sale
600 pcs.
2.1658 €
Description
Technical specifications
Download
Logistics
Compliance

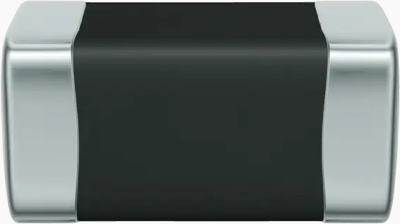

SMD multilayer varistor, B72542V6300K062, EPCOS

Features

  • High energy absorption capability
  • High surge load capability acc. to IEC 61000-4-5
  • Bidirectional protection
  • Low leakage current
  • Long-term ESD stability
  • RoHS-compatible, lead-free

Applications

  • Industrial applications
  • Building safety and security applications
  • Power supplies
Technical specifications
Rated voltage (DC) 38 V
Varistor Voltage Type 47 V
Energy absorption 15 J
Rated voltage (AC) 30 V
Design SMD 2220
min. operating temperature -55 °C
Tolerance ±10 %
max. operating temperature 150 °C
max. Surge current, transient (8/20 µs) 6000 A
Power dissipation 0.02 W
Articles of same specification 0
Logistics
Customs tariff number 85332900
Original Packaging Reel with 600 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
