B72530T0350K062 | TDK (EPCOS)

Name: Varistor, SMD 1210, VV 56 V, 250 A, 45 V (DC), 35 V (AC), ±10 %, 0.01 VA (AC), 2 J, B72530T0350K062
Brand: TDK (EPCOS)
SKU: 82E6691
Availability: OutOfStock

Varistor, SMD 1210, VV 56 V, 250 A, 45 V (DC), 35 V (AC), ±10 %, 0.01 VA (AC), 2 J, B72530T0350K062

Order No.: 82E6691

EAN: 4099879994592

MPN:

B72530T0350K062

B72530T350K62

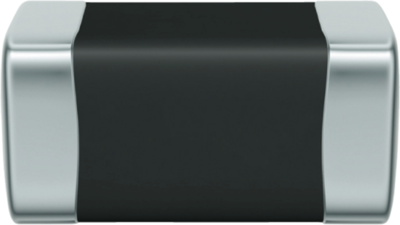

Image may differ

Key Specification:

Design SMD 1210

Varistor Voltage Type 56 V

max. Surge current, transient (8/20 Âµs) 250 A

Rated voltage (DC) 45 V

Rated voltage (AC) 35 V

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.3058 € *

Standard delivery time from the manufacturer is: 11 Weeks

Total Price:

2,446.64 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

SMD multilayer varistor, B72530T0350K062, EPCOS

Features

High energy absorption capability
High surge load capability acc. to IEC 61000-4-5
Bidirectional protection
Low leakage current
Long-term ESD stability
RoHS-compatible, lead-free

Applications

Industrial applications
Building safety and security applications
Power supplies

Technical specifications

	Rated voltage (DC)	45 V
	Varistor Voltage Type	56 V
	Energy absorption	2 J
	Rated voltage (AC)	35 V
	Design	SMD 1210
	min. operating temperature	-55 °C
	Tolerance	±10 %
	max. operating temperature	125 °C
	max. Surge current, transient (8/20 Âµs)	250 A
	Standard number	IEC, CECC
	Power dissipation	0.01 W
