B72530T0040M062 | TDK (EPCOS)

Name: Varistor, SMD 1210, VV 8 V, 250 A, 5.5 V (DC), 4 V (AC), ±20 %, 0.01 VA (AC), 0.4 J, B72530T0040M062
Brand: TDK (EPCOS)
SKU: 82E4850
Availability: InStock

Varistor, SMD 1210, VV 8 V, 250 A, 5.5 V (DC), 4 V (AC), ±20 %, 0.01 VA (AC), 0.4 J, B72530T0040M062

Order No.: 82E4850

EAN: 4099879990112

MPN:

B72530T0040M062

B72530T40M62

Series: B72530

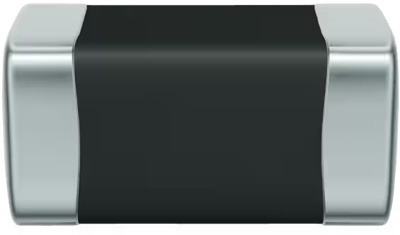

B72530T0040M062 TDK (EPCOS) Varistors Image 1

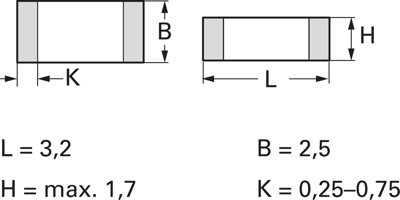

B72530T0040M062 TDK (EPCOS) Varistors Image 2

Image may differ

Key Specification:

Design SMD 1210

Varistor Voltage Type 8 V

max. Surge current, transient (8/20 Âµs) 250 A

Rated voltage (DC) 5.5 V

Rated voltage (AC) 4 V

Show variants: 6

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.3094 € *

Standard delivery time from the manufacturer is: 12 Weeks

Total Price:

1,856.40 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

SMD metal oxide varistors (VDRs), type TDK/Epcos B725.

Chip package, molded, good soldering properties, low-inductance

Size 1210, type B72530.

Technical specifications

Filter	Property	Value
	Rated voltage (AC)	4 V
	max. operating temperature	125 °C
	min. operating temperature	-55 °C
	max. Surge current, transient (8/20 Âµs)	250 A
	Design	SMD 1210
	Standard number	UL, IEC, CECC
	Varistor Voltage Type	8 V
	Energy absorption	0.4 J
	Power dissipation	0.01 W
	Rated voltage (DC)	5.5 V
	Tolerance	±20 %
