B72530E0250K062 | TDK (EPCOS)
Varistor, SMD 1210, VV 39 V, 300 A, 31 V (DC), 25 V (AC), ±10 %, 0.01 VA (AC), 1.7 J, B72530E0250K062
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.2975 € *
Standard delivery time from the manufacturer is: 12 Weeks

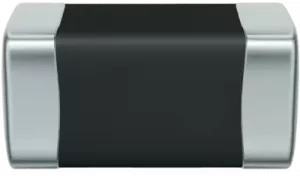

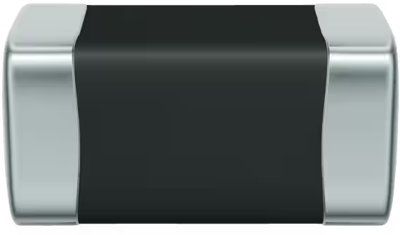

SMD metal oxide varistors (VDRs), type TDK/Epcos B725.
Chip package, molded, good soldering properties, low-inductance

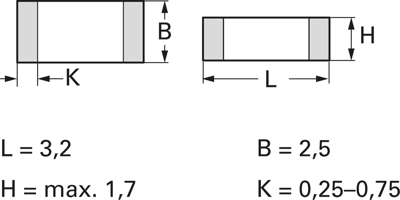

Size 1210, type B72530.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Design | SMD 1210 | |
| Varistor Voltage Type | 39 V | |
| max. Surge current, transient (8/20 µs) | 300 A | |
| Rated voltage (DC) | 31 V | |
| Rated voltage (AC) | 25 V | |
| Tolerance | ±10 % | |
| Power dissipation | 0.01 W | |
| Energy absorption | 1.7 J | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C | |
| Standard number | UL, IEC, CECC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332900 |
| Country of origin | AT |
| Original Packaging | Reel with 2,000 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
