B72530E0170K062 | TDK (EPCOS)
Varistor, SMD 1210, VV 27 V, 400 A, 22 V (DC), 17 V (AC), ±10 %, 0.01 VA (AC), 1.7 J, B72530E0170K062
Order No.: 82E4857
EAN: 4099879990136
MPN:
B72530E0170K062
B72530E170K62
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.357 € *
Standard delivery time from the manufacturer is: 1,001 Weeks

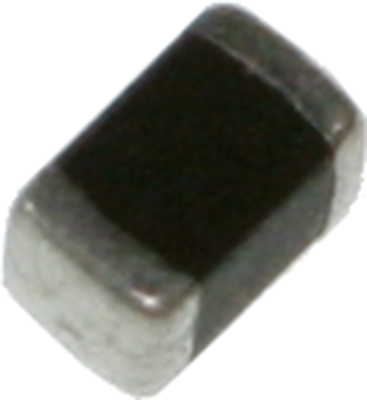

SMD metal oxide varistors (VDRs), type TDK/Epcos B725.
Chip package, molded, good soldering properties, low-inductance
Size 1210, type B72530.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Design | SMD 1210 | |
| Varistor Voltage Type | 27 V | |
| max. Surge current, transient (8/20 µs) | 400 A | |
| Rated voltage (DC) | 22 V | |
| Rated voltage (AC) | 17 V | |
| Tolerance | ±10 % | |
| Power dissipation | 0.01 W | |
| Energy absorption | 1.7 J | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C | |
| Standard number | UL, IEC, CECC |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 3,000 pieces |
| Country of origin | HR |
| Customs tariff number | 85332900 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
