B72520T0500K062 | TDK (EPCOS)

Name: Varistor, SMD 1206, VV 82 V, 100 A, 65 V (DC), 50 V (AC), ±10 %, 0.008 VA (AC), 0.6 J, B72520T0500K062
Brand: TDK (EPCOS)
SKU: 82E4846
Availability: InStock

Varistor, SMD 1206, VV 82 V, 100 A, 65 V (DC), 50 V (AC), ±10 %, 0.008 VA (AC), 0.6 J, B72520T0500K062

Order No.: 82E4846

EAN: 4099879990105

MPN:

B72520T0500K062

B72520T500K62

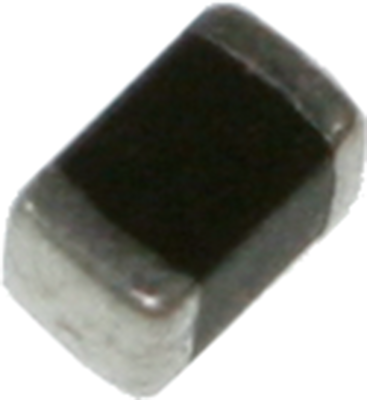

B72520T0500K062 TDK (EPCOS) Varistors Image 2

Image may differ

Key Specification:

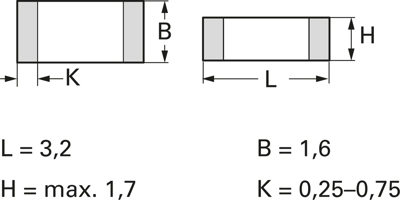

Design SMD 1206

Varistor Voltage Type 82 V

max. Surge current, transient (8/20 Âµs) 100 A

Rated voltage (DC) 65 V

Rated voltage (AC) 50 V

Download Datasheet Technical specifications

NCNR (non cancelable / non returnable)

Unit Price (€ / pc.)

0.2606 € *

Standard delivery time from the manufacturer is: 12 Weeks

Total Price:

1,042.44 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

SMD metal oxide varistors (VDRs), type TDK/Epcos B725.

Chip package, molded, good soldering properties, low-inductance

Size 1206, type B72520.

Technical specifications

Filter	Property	Value
	Design	SMD 1206
	Varistor Voltage Type	82 V
	max. Surge current, transient (8/20 Âµs)	100 A
	Rated voltage (DC)	65 V
	Rated voltage (AC)	50 V
	Tolerance	±10 %
	Power dissipation	0.008 W
	Energy absorption	0.6 J
	min. operating temperature	-55 °C
	max. operating temperature	125 °C
	Standard number	UL, IEC, CECC
