B72520G0250K062 | TDK (EPCOS)

Varistor, SMD 1206, VV 39 V, 200 A, 31 V (DC), 25 V (AC), ±10 %, 0.008 VA (AC), 1 J, B72520G0250K062

Order No.: 76D9878
EAN: 4099879987495
MPN:
B72520G0250K062
B72520G250K62
TDK (EPCOS)
B72520G0250K062 TDK (EPCOS) Varistors
Image may differ
Print
Key Specification:
Design SMD 1206
Varistor Voltage Type 39 V
max. Surge current, transient (8/20 µs) 200 A
Rated voltage (DC) 31 V
Rated voltage (AC) 25 V
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.2773 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
1,109.08 € *
*incl. VAT plus shipping costs
**Subject to prior sale
4000 pcs.
0.2773 €
Description
Technical specifications
Download
Logistics
Compliance

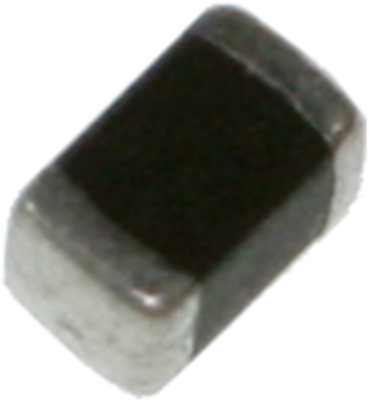

SMD multilayer varistor, B72520G0250K062, EPCOS

Features

  • High energy absorption capability
  • Low leakage current
  • Long-term ESD stability
  • Bidirectional protection
  • Qualification based on AEC-Q200
  • RoHS-compatible, lead-free

Applications

  • Transient overvoltage protection in automotive applications: battery lines, body control units, ABS/ESP, EPS, DC motors
Technical specifications
Rated voltage (DC) 31 V
Varistor Voltage Type 39 V
Energy absorption 1 J
Rated voltage (AC) 25 V
Design SMD 1206
min. operating temperature -55 °C
Tolerance ±10 %
max. operating temperature 150 °C
max. Surge current, transient (8/20 µs) 200 A
Power dissipation 0.008 W
Articles of same specification 0
Logistics
Customs tariff number 85332900
Original Packaging Reel with 4,000 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
