B72510T0080L062 | TDK (EPCOS)
Varistor, SMD 0805, VV 15 V, 120 A, 11 V (DC), 8 V (AC), ±15 %, 0.005 VA (AC), 0.2 J, B72510T0080L062
 Order No.: 82E4810
  EAN: 4099879989949
  MPN:
  B72510T0080L062
 Unit Price (€ / pc.)
   0.2190 €  *
   Standard delivery time from the manufacturer is: 11 Weeks

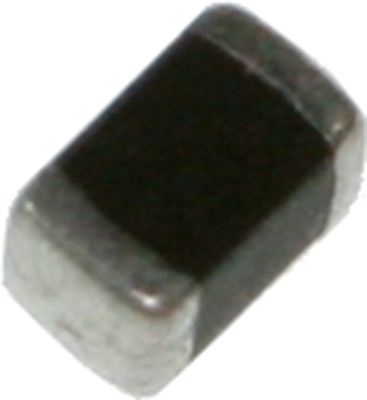

 SMD metal oxide varistors (VDRs), type TDK/Epcos B725.
Chip package, molded, good soldering properties, low-inductance
Size 0805, type B72510.
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Rated voltage (AC) | 8 V | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| max. Surge current, transient (8/20 µs) | 120 A | |

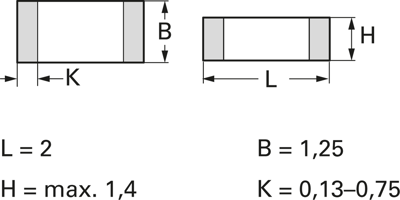

| Design | SMD 0805 | |
| Standard number | UL, IEC, CECC | |
| Varistor Voltage Type | 15 V | |
| Energy absorption | 0.2 J | |
| Power dissipation | 0.005 W | |
| Rated voltage (DC) | 11 V | |
| Tolerance | ±15 % |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85332900 |
| Original Packaging | Reel with 3,000 pieces |
| Country of origin | HR |
 Compliance

 | Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
