B72500T0140K060 | TDK (EPCOS)
Varistor, SMD 0603, VV 22 V, 30 A, 18 V (DC), 14 V (AC), ±10 %, 0.003 VA (AC), 0.2 J, B72500T0140K060
Order No.: 82E4804
EAN: 4099879989918
MPN:
B72500T0140K060
B72500T140K60
Unit Price (€ / pc.)
0.1142 € *
Standard delivery time from the manufacturer is: 12 Weeks

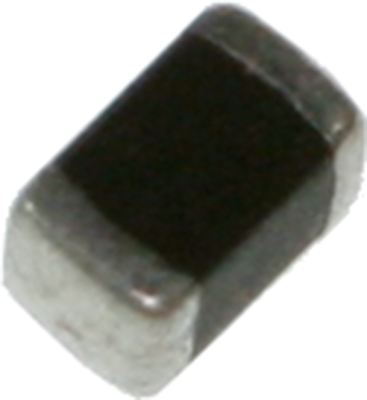

SMD metal oxide varistors (VDRs), type TDK/Epcos B725.
Chip package, molded, good soldering properties, low-inductance

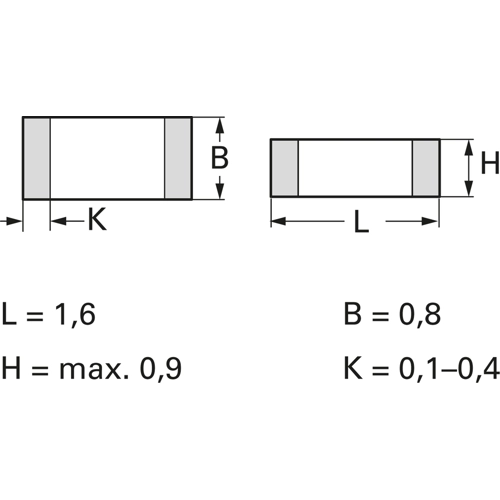

Size 0603, type B72500.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Varistor Voltage Type | 22 V | |
| Rated voltage (DC) | 18 V | |
| max. operating temperature | 85 °C | |
| Rated voltage (AC) | 14 V | |
| max. Surge current, transient (8/20 µs) | 30 A | |
| Tolerance | ±10 % | |
| Standard number | UL, IEC, CECC | |
| min. operating temperature | -55 °C | |
| Energy absorption | 0.2 J | |
| Power dissipation | 0.003 W | |
| Design | SMD 0603 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | AT |
| Original Packaging | Reel with 4,000 pieces |
| Customs tariff number | 85332900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
