B72500E2170S160 | TDK (EPCOS)
Varistor, SMD 0603, VV 27 V, 30 A, 22 V (DC), 17 V (AC), ±25 %, 0.003 VA (AC), 0.075 J, B72500E2170S160
Order No.: 82E6574
EAN: 4099879994400
MPN:
B72500E2170S160
Unit Price (€ / pc.)
0.1559 € *
Standard delivery time from the manufacturer is: 11 Weeks

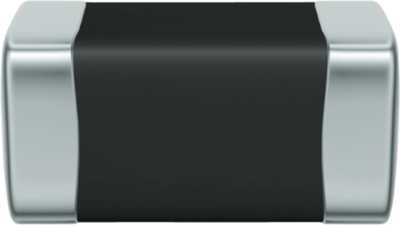

SMD multilayer varistor, B72500E2170S160, EPCOS
Features
- High energy absorption capability
- Low leakage current
- Long-term ESD stability
- Bidirectional protection
- Qualification based on AEC-Q200
- RoHS-compatible, lead-free
Applications
- Transient overvoltage protection in automotive applications: engine management, airbag, control units, electrohydraulic brake, ABS/ESP, sunroof
- Load-dump protection
- Jump-start protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Varistor Voltage Type | 27 V | |
| Rated voltage (DC) | 22 V | |
| max. operating temperature | 125 °C | |
| Rated voltage (AC) | 17 V | |
| max. Surge current, transient (8/20 µs) | 30 A | |
| Tolerance | ±25 % | |
| min. operating temperature | -55 °C | |
| Energy absorption | 0.075 J | |
| Power dissipation | 0.003 W | |
| Design | SMD 0603 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HR |
| Original Packaging | Reel with 4,000 pieces |
| Customs tariff number | 85332900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
