B72280B0461K001 | TDK (EPCOS)

Varistor, chassis mounting, VV 750 V, 100000 A, 615 V (DC), 460 V (AC), ±10 %, 2 VA (AC), 2500 J, B72280B0461K001

Order No.: 82E6549
EAN: 4099879994264
MPN:
B72280B0461K001
B72280B461K1
Series: B72280

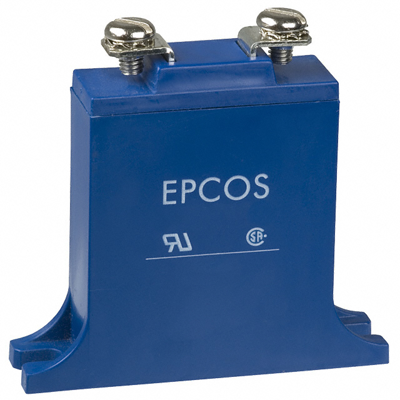

B72280B0461K001 TDK (EPCOS) Varistors Image 1
B72280B0461K001 TDK (EPCOS) Varistors Image 2
Image may differ
Unit Price (€ / pc.)
220.5665 € *
Available: 12 pcs.
Total Price:
220.57 € *
Price list
Quantity
Price per unit*
1 pcs.
220.5665 €
5 pcs.
209.5233 €
10 pcs.
205.1203 €
20 pcs.
200.7054 €
40 pcs.
196.2905 €
*incl. VAT plus shipping costs
Subject to prior sale

Varistor, B72280B0461K001, EPCOS

Features

  • High energy absorption capability
  • Low leakage current
  • Long-term ESD stability
  • RoHS-compatible, lead-free
Technical specifications
Design chassis mounting
Varistor Voltage Type 750 V
max. Surge current, transient (8/20 µs) 100000 A
Rated voltage (DC) 615 V
Rated voltage (AC) 460 V
Tolerance ±10 %
Power dissipation 2 W
Energy absorption 2500 J
Grid 32 mm
min. operating temperature -40 °C
max. operating temperature 85 °C
Standard number UL, CSA
Logistics
Country of origin CN
Customs tariff number 85332100
Original Packaging Bulk with 5 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
