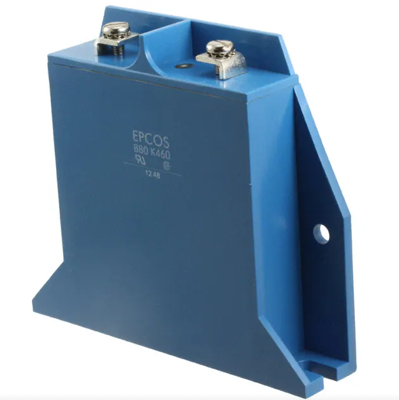

B72280B0321K001 | TDK (EPCOS)

Name: Varistor, chassis mounting, VV 510 V, 100000 A, 420 V (DC), 320 V (AC), ±10 %, 2 VA (AC), 1600 J, B72280B0321K001
Brand: TDK (EPCOS)
SKU: 82E6545
Availability: InStock

Varistor, chassis mounting, VV 510 V, 100000 A, 420 V (DC), 320 V (AC), ±10 %, 2 VA (AC), 1600 J, B72280B0321K001

Order No.: 82E6545

EAN: 4099879994226

MPN:

B72280B0321K001

B72280B321K1

Image may differ

Key Specification:

Design chassis mounting

Varistor Voltage Type 510 V

max. Surge current, transient (8/20 Âµs) 100000 A

Rated voltage (DC) 420 V

Rated voltage (AC) 320 V

Download Datasheet Technical specifications

Unit Price (€ / pc.)

173.9304 € *

Standard delivery time from the manufacturer is: 28 Weeks

Total Price:

869.65 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Technical specifications

Filter	Property	Value
	Design	chassis mounting
	Varistor Voltage Type	510 V
	max. Surge current, transient (8/20 Âµs)	100000 A
	Rated voltage (DC)	420 V
	Rated voltage (AC)	320 V
	Tolerance	±10 %
	Power dissipation	2 W
	Energy absorption	1600 J
	Grid	32 mm
	min. operating temperature	-40 °C
	max. operating temperature	85 °C
	Standard number	UL, CSA
