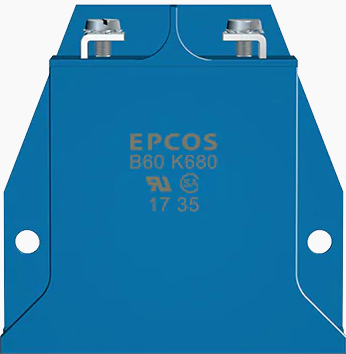

B72260B0681K001 | TDK (EPCOS)
Varistor, chassis mounting, VV 1.1 kV, 70000 A, 895 V (DC), 680 V (AC), ±10 %, 1.6 VA (AC), 1800 J, B72260B0681K001
Order No.: 82E6537
EAN: 4099879994141
MPN:
B72260B0681K001
B72260B681K1
Unit Price (€ / pc.)
102.578 € *
Standard delivery time from the manufacturer is: 28 Weeks
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 895 V | |
| max. Surge current, transient (8/20 µs) | 70000 A | |
| Energy absorption | 1800 J | |
| Rated voltage (AC) | 680 V | |
| Tolerance | ±10 % | |
| Power dissipation | 1.6 W | |
| Design | chassis mounting | |
| Varistor Voltage Type | 1.1 V | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Standard number | UL, CSA, IEC, CECC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Country of origin | CN |
| Original Packaging | Bulk with 10 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
