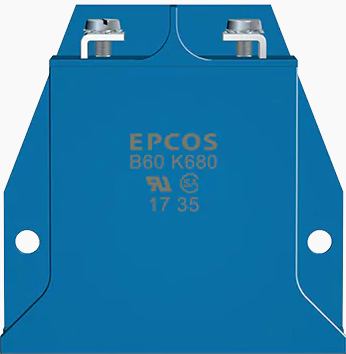

B72260B0271K001 | TDK (EPCOS)
Varistor, chassis mounting, VV 430 V, 70000 A, 350 V (DC), 275 V (AC), ±10 %, 1.6 VA (AC), 860 J, B72260B0271K001
Order No.: 82E6530
EAN: 4099879994073
MPN:
B72260B0271K001
B72260B271K1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
86.9771 € *
Standard delivery time from the manufacturer is: 36 Weeks
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Design | chassis mounting | |
| Varistor Voltage Type | 430 V | |
| max. Surge current, transient (8/20 µs) | 70000 A | |
| Rated voltage (DC) | 350 V | |
| Rated voltage (AC) | 275 V | |
| Tolerance | ±10 % | |
| Power dissipation | 1.6 W | |
| Energy absorption | 860 J | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Standard number | UL, CSA, IEC, CECC |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 10 pieces |
| Country of origin | CN |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
