B72260B0151K001 | TDK (EPCOS)

Name: Varistor, chassis mounting, VV 390 V, 100000 A, 320 V (DC), 250 V (AC), ±10 %, 2 VA (AC), 1300 J, B72260B0151K001
Brand: TDK (EPCOS)
SKU: 82E6527
Availability: InStock

Varistor, chassis mounting, VV 390 V, 100000 A, 320 V (DC), 250 V (AC), ±10 %, 2 VA (AC), 1300 J, B72260B0151K001

Order No.: 82E6527

EAN: 4099879994042

MPN:

B72260B0151K001

B72260B151K1

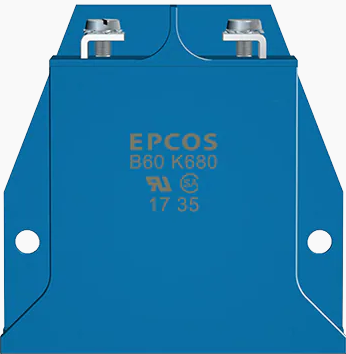

Image may differ

Key Specification:

Design chassis mounting

Varistor Voltage Type 390 V

max. Surge current, transient (8/20 Âµs) 100000 A

Rated voltage (DC) 320 V

Rated voltage (AC) 250 V

Download Datasheet Technical specifications

NCNR (non cancelable / non returnable)

Unit Price (€ / pc.)

86.9771 € *

Standard delivery time from the manufacturer is: 1,023 Weeks

Total Price:

869.77 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Technical specifications

Filter	Property	Value
	Design	chassis mounting
	Varistor Voltage Type	390 V
	max. Surge current, transient (8/20 Âµs)	100000 A
	Rated voltage (DC)	320 V
	Rated voltage (AC)	250 V
	Tolerance	±10 %
	Power dissipation	2 W
	Energy absorption	1300 J
	Grid	32 mm
	min. operating temperature	-40 °C
	max. operating temperature	85 °C
	Standard number	UL, CSA
