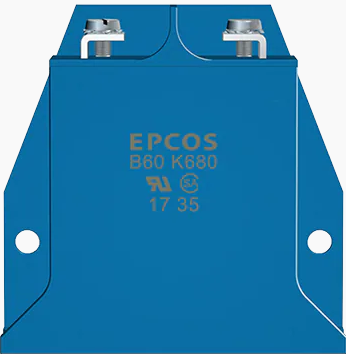

B72260B0102K001 | TDK (EPCOS)
Varistor, chassis mounting, VV 1.8 kV, 70000 A, 1.465 kV (DC), 1.1 kV (AC), ±10 %, 1.6 VA (AC), 3000 J, B72260B0102K001
Order No.: 82E6525
EAN: 4099879994028
MPN:
B72260B0102K001
B72260B102K1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
171.4909 € *
Standard delivery time from the manufacturer is: 36 Weeks
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Design | chassis mounting | |
| Varistor Voltage Type | 1.8 V | |
| max. Surge current, transient (8/20 µs) | 70000 A | |
| Rated voltage (DC) | 1.465 kV | |
| Rated voltage (AC) | 1.1 kV | |
| Tolerance | ±10 % | |
| Power dissipation | 1.6 W | |
| Energy absorption | 3000 J | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Standard number | UL, CSA, IEC, CECC |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 10 pieces |
| Country of origin | CN |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
