B72240B0751K001 | TDK (EPCOS)
Varistor, chassis mounting, VV 1.2 kV, 40000 A, 970 V (DC), 750 V (AC), ±10 %, 1.4 VA (AC), 1200 J, B72240B0751K001
Unit Price (€ / pc.)
33.1772 € *
Available: 134 pcs.
Total Price:
33.18 € *
Price list
Quantity
Price per unit*
1 pcs.
33.1772 €
10 pcs.
29.0836 €
50 pcs.
27.2272 €
100 pcs.
25.6921 €
250 pcs.
25.1804 €
*incl. VAT plus shipping costs
Subject to prior sale

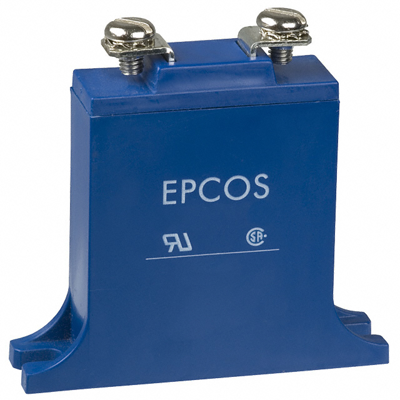

Varistor, B72240B0751K001, EPCOS
Features
- High energy absorption capability
- Low leakage current
- Long-term ESD stability
- RoHS-compatible, lead-free
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Standard number | UL, CSA, IEC, CECC | |
| max. Surge current, transient (8/20 µs) | 40000 A | |
| Energy absorption | 1200 J | |
| Tolerance | ±10 % | |
| Rated voltage (DC) | 970 V | |
| Power dissipation | 1.4 W | |
| Rated voltage (AC) | 750 V | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Varistor Voltage Type | 1.2 V | |
| Design | chassis mounting |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 10 pieces |
| Country of origin | CN |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
