B72240B0381K001 | TDK (EPCOS)
Varistor, chassis mounting, VV 620 V, 40000 A, 505 V (DC), 385 V (AC), ±10 %, 1.4 VA (AC), 800 J, B72240B0381K001
Unit Price (€ / pc.)
41.1740 € *
Available: 32 pcs.
Total Price:
41.17 € *
Price list
Quantity
Price per unit*
1 pcs.
41.1740 €
10 pcs.
36.2355 €
20 pcs.
35.2478 €
40 pcs.
34.2601 €
160 pcs.
32.2847 €
*incl. VAT plus shipping costs
Subject to prior sale

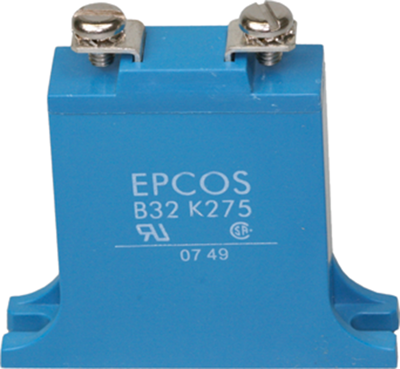

Metal oxide varistors (VDRs), type TDK/Epcos B32K/B40K B72232..K001/B72240..K001.
Molded plastic package, molding and package flame retardant to UL 94 V-0, heavy duty version, screw terminals
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Varistor Voltage Type | 620 V | |
| Rated voltage (DC) | 505 V | |
| max. operating temperature | 85 °C | |
| Rated voltage (AC) | 385 V | |
| max. Surge current, transient (8/20 µs) | 40000 A | |
| Tolerance | ±10 % | |
| Standard number | UL, CSA, IEC, CECC | |
| min. operating temperature | -40 °C | |
| Energy absorption | 800 J | |
| Power dissipation | 1.4 W | |
| Design | chassis mounting |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Bulk with 10 pieces |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
