B72240B0271K001 | TDK (EPCOS)

Name: Varistor, chassis mounting, VV 430 V, 40000 A, 350 V (DC), 275 V (AC), ±10 %, 1.4 VA (AC), 550 J, B72240B0271K001
Brand: TDK (EPCOS)
SKU: 82E2611
Availability: InStock

Varistor, chassis mounting, VV 430 V, 40000 A, 350 V (DC), 275 V (AC), ±10 %, 1.4 VA (AC), 550 J, B72240B0271K001

Order No.: 82E2611

EAN: 4099879988973

MPN:

B72240B0271K001

B72240B271K1

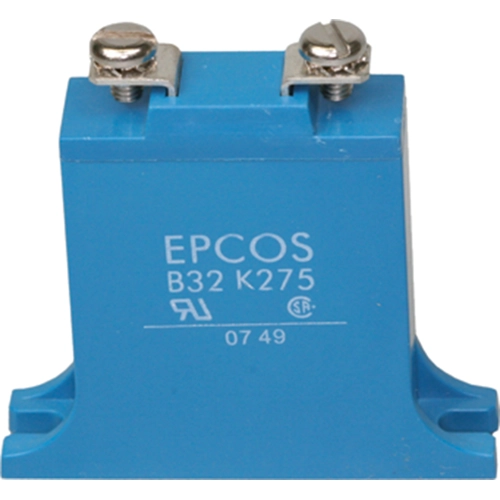

B72240B0271K001 TDK (EPCOS) Varistors Image 2

Image may differ

Key Specification:

Design chassis mounting

Varistor Voltage Type 430 V

max. Surge current, transient (8/20 Âµs) 40000 A

Rated voltage (DC) 350 V

Rated voltage (AC) 275 V

Download Datasheet Technical specifications

Unit Price (€ / pc.)

33.3081 € *

Standard delivery time from the manufacturer is: 28 Weeks

Total Price:

1,332.32 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Metal oxide varistors (VDRs), type TDK/Epcos B32K/B40K B72232..K001/B72240..K001.

Molded plastic package, molding and package flame retardant to UL 94 V-0, heavy duty version, screw terminals

Technical specifications

Filter	Property	Value
	Rated voltage (AC)	275 V
	Rated voltage (DC)	350 V
	Design	chassis mounting
	Power dissipation	1.4 W
	max. operating temperature	85 °C
	min. operating temperature	-40 °C
	Energy absorption	550 J
	Varistor Voltage Type	430 V
	Tolerance	±10 %
	max. Surge current, transient (8/20 Âµs)	40000 A
	Standard number	UL, CSA, IEC, CECC
