B72240B0231K001 | TDK (EPCOS)

Name: Varistor, chassis mounting, VV 360 V, 40000 A, 300 V (DC), 230 V (AC), ±10 %, 1.4 VA (AC), 460 J, B72240B0231K001
Brand: TDK (EPCOS)
SKU: 82E2607
Availability: OutOfStock

Varistor, chassis mounting, VV 360 V, 40000 A, 300 V (DC), 230 V (AC), ±10 %, 1.4 VA (AC), 460 J, B72240B0231K001

Order No.: 82E2607

EAN: 4099879988935

MPN:

B72240B0231K001

B72240B231K1

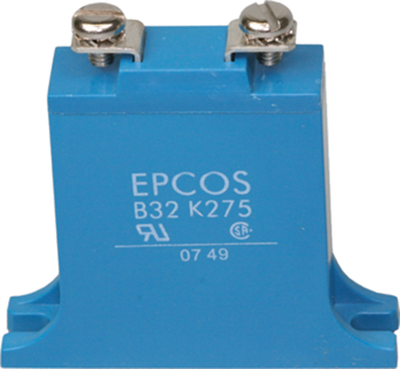

B72240B0231K001 TDK (EPCOS) Varistors Image 2

Image may differ

Key Specification:

Design chassis mounting

Varistor Voltage Type 360 V

max. Surge current, transient (8/20 Âµs) 40000 A

Rated voltage (DC) 300 V

Rated voltage (AC) 230 V

Download Datasheet Technical specifications

Unit Price (€ / pc.)

33.3081 € *

Available: 0 pcs.

Leadtime: 28 Weeks **

Total Price:

1,332.32 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Metal oxide varistors (VDRs), type TDK/Epcos B32K/B40K B72232..K001/B72240..K001.

Molded plastic package, molding and package flame retardant to UL 94 V-0, heavy duty version, screw terminals

Technical specifications

	Rated voltage (DC)	300 V
	Varistor Voltage Type	360 V
	Energy absorption	460 J
	Rated voltage (AC)	230 V
	Design	chassis mounting
	min. operating temperature	-40 °C
	Tolerance	±10 %
	max. operating temperature	85 °C
	max. Surge current, transient (8/20 Âµs)	40000 A
	Standard number	UL, CSA, IEC, CECC
	Power dissipation	1.4 W
