B72232B0681K001 | TDK (EPCOS)

Name: Varistor, chassis mounting, VV 1.1 kV, 25000 A, 895 V (DC), 680 V (AC), ±10 %, 1.2 VA (AC), 760 J, B72232B0681K001
Brand: TDK (EPCOS)
SKU: 82E6443
Availability: InStock

Varistor, chassis mounting, VV 1.1 kV, 25000 A, 895 V (DC), 680 V (AC), ±10 %, 1.2 VA (AC), 760 J, B72232B0681K001

Order No.: 82E6443

EAN: 4099879993939

MPN:

B72232B0681K001

B72232B681K1

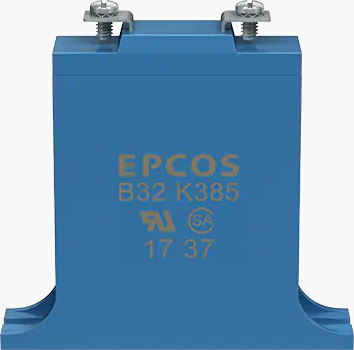

Image may differ

Key Specification:

Design chassis mounting

Varistor Voltage Type 1.1 V

max. Surge current, transient (8/20 Âµs) 25000 A

Rated voltage (DC) 895 V

Rated voltage (AC) 680 V

Download Datasheet Technical specifications

NCNR (non cancelable / non returnable)

Unit Price (€ / pc.)

25.347 € *

Standard delivery time from the manufacturer is: 40 Weeks

Total Price:

1,013.88 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Technical specifications

Filter	Property	Value
	Design	chassis mounting
	Varistor Voltage Type	1.1 V
	max. Surge current, transient (8/20 Âµs)	25000 A
	Rated voltage (DC)	895 V
	Rated voltage (AC)	680 V
	Tolerance	±10 %
	Power dissipation	1.2 W
	Energy absorption	760 J
	min. operating temperature	-40 °C
	max. operating temperature	85 °C
	Standard number	UL, CSA, IEC, CECC
