B72232B0441K001 | TDK (EPCOS)

Name: Varistor, chassis mounting, VV 715 V, 25000 A, 585 V (DC), 440 V (AC), ±10 %, 1.2 VA (AC), 630 J, B72232B0441K001
Brand: TDK (EPCOS)
SKU: 82E6442
Availability: InStock

Varistor, chassis mounting, VV 715 V, 25000 A, 585 V (DC), 440 V (AC), ±10 %, 1.2 VA (AC), 630 J, B72232B0441K001

Order No.: 82E6442

EAN: 4099879993922

MPN:

B72232B0441K001

B72232B441K1

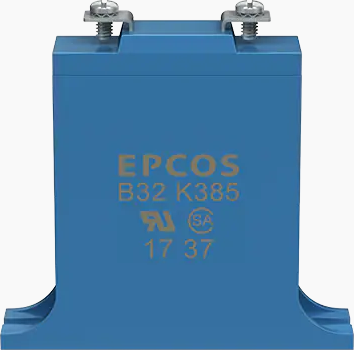

Image may differ

Key Specification:

Design chassis mounting

Varistor Voltage Type 715 V

max. Surge current, transient (8/20 Âµs) 25000 A

Rated voltage (DC) 585 V

Rated voltage (AC) 440 V

Download Datasheet Technical specifications

Unit Price (€ / pc.)

23.2288 € *

Standard delivery time from the manufacturer is: 28 Weeks

Total Price:

929.15 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Technical specifications

Filter	Property	Value
	Design	chassis mounting
	Varistor Voltage Type	715 V
	max. Surge current, transient (8/20 Âµs)	25000 A
	Rated voltage (DC)	585 V
	Rated voltage (AC)	440 V
	Tolerance	±10 %
	Power dissipation	1.2 W
	Energy absorption	630 J
	min. operating temperature	-40 °C
	max. operating temperature	85 °C
	Standard number	UL, CSA, IEC, CECC
