B72225S4321K101 | TDK (EPCOS)

Name: Varistor, radial, VV 510 V, 20000 A, 420 V (DC), 320 V (AC), ±10 %, 1 VA (AC), 445 J, B72225S4321K101
Brand: TDK (EPCOS)
SKU: 82E3216
Availability: InStock

Varistor, radial, VV 510 V, 20000 A, 420 V (DC), 320 V (AC), ±10 %, 1 VA (AC), 445 J, B72225S4321K101

Order No.: 82E3216

EAN: 4099879989123

MPN:

B72225S4321K101

Image may differ

Key Specification:

Design radial

Varistor Voltage Type 510 V

max. Surge current, transient (8/20 Âµs) 20000 A

Rated voltage (DC) 420 V

Rated voltage (AC) 320 V

Download Datasheet Technical specifications

Unit Price (€ / pc.)

2.7370 € *

Standard delivery time from the manufacturer is: 20 Weeks

Total Price:

6,568.80 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

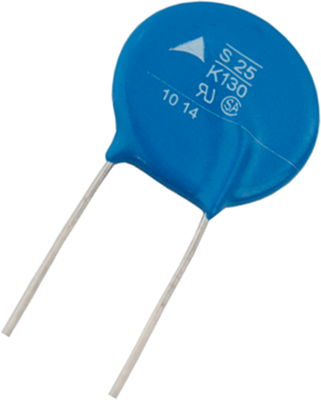

Metal oxide varistors, type TDK/Epcos S25 B72225S.

Disk version

Technical specifications

Filter	Property	Value
	Design	radial
	Varistor Voltage Type	510 V
	max. Surge current, transient (8/20 Âµs)	20000 A
	Rated voltage (DC)	420 V
	Rated voltage (AC)	320 V
	Tolerance	±10 %
	Power dissipation	1 W
	Energy absorption	445 J
	Grid	12 mm
	min. operating temperature	-40 °C
	max. operating temperature	85 °C
	Standard number	UL, CSA, VDE, IEC, IEC
