B72225S4131K101 | TDK (EPCOS)

Varistor, radial, VV 205 V, 20000 A, 170 V (DC), 130 V (AC), ±10 %, 1 VA (AC), 185 J, B72225S4131K101

Order No.: 82E3200
EAN: 4099879989079
MPN:
B72225S4131K101
Series: B72225
TDK (EPCOS)

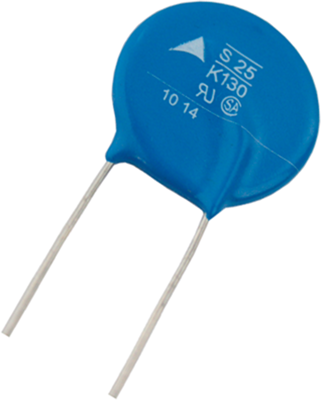

B72225S4131K101 TDK (EPCOS) Varistors Image 1

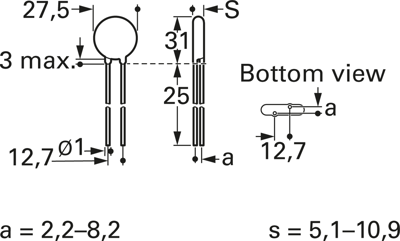

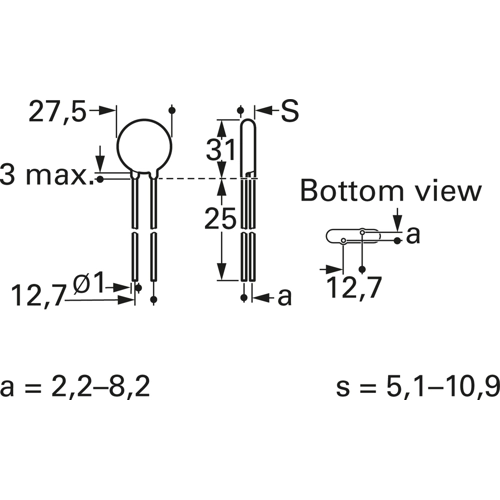

B72225S4131K101 TDK (EPCOS) Varistors Image 2
Image may differ
Print
Key Specification:
Design radial
Varistor Voltage Type 205 V
max. Surge current, transient (8/20 µs) 20000 A
Rated voltage (DC) 170 V
Rated voltage (AC) 130 V
Show variants: 7
Download Datasheet Technical specifications
Unit Price (€ / pc.)
2.7370 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
2,737.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
2.7370 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Metal oxide varistors, type TDK/Epcos S25 B72225S.

Disk version
Technical specifications
Design radial
Varistor Voltage Type 205 V
max. Surge current, transient (8/20 µs) 20000 A
Rated voltage (DC) 170 V
Rated voltage (AC) 130 V
Tolerance ±10 %
Power dissipation 1 W
Energy absorption 185 J
Grid 12 mm
min. operating temperature -40 °C
max. operating temperature 85 °C
Standard number UL, CSA, VDE, IEC, IEC
Articles of same specification 0
Logistics
Country of origin CN
Original Packaging Bulk with 200 pieces
Customs tariff number 85332100
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
