B72220S0140K101 | TDK (EPCOS)

Name: Varistor, radial, VV 22 V, 2000 A, 18 V (DC), 14 V (AC), ±10 %, 0.2 VA (AC), 12 J, B72220S0140K101
Brand: TDK (EPCOS)
SKU: 82E2194
Availability: InStock

Varistor, radial, VV 22 V, 2000 A, 18 V (DC), 14 V (AC), ±10 %, 0.2 VA (AC), 12 J, B72220S0140K101

Order No.: 82E2194

EAN: 4099879987655

MPN:

B72220S0140K101

B72220S140K101

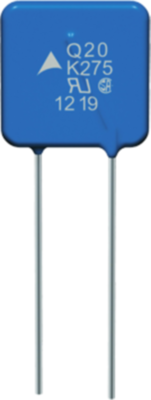

Image may differ

Key Specification:

Design radial

Varistor Voltage Type 22 V

max. Surge current, transient (8/20 Âµs) 2000 A

Rated voltage (DC) 18 V

Rated voltage (AC) 14 V

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.9401 € *

Standard delivery time from the manufacturer is: 20 Weeks

Total Price:

1,410.15 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Metal oxide varistors (VDRs), type TDK/Epcos S20 B72220..K101.

Disk version

Technical specifications

Filter	Property	Value
	Design	radial
	Varistor Voltage Type	22 V
	max. Surge current, transient (8/20 Âµs)	2000 A
	Rated voltage (DC)	18 V
	Rated voltage (AC)	14 V
	Tolerance	±10 %
	Power dissipation	0.2 W
	Energy absorption	12 J
	Grid	10 mm
	min. operating temperature	-40 °C
	max. operating temperature	85 °C
	Standard number	UL, CSA, SEV, VDE, CECC, CQC, IEC
