B72220Q0211K101 | TDK (EPCOS)

Name: Varistor, radial, VV 330 V, 15000 A, 270 V (DC), 210 V (AC), ±10 %, 1.2 VA (AC), 165 J, B72220Q0211K101
Brand: TDK (EPCOS)
SKU: 82E6364
Availability: InStock

Varistor, radial, VV 330 V, 15000 A, 270 V (DC), 210 V (AC), ±10 %, 1.2 VA (AC), 165 J, B72220Q0211K101

Order No.: 82E6364

EAN: 4099879993472

MPN:

B72220Q0211K101

B72220Q211K101

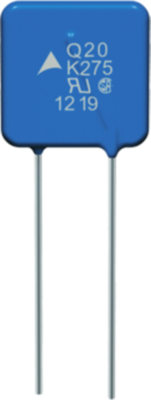

Image may differ

Key Specification:

Design radial

Varistor Voltage Type 330 V

max. Surge current, transient (8/20 Âµs) 15000 A

Rated voltage (DC) 270 V

Rated voltage (AC) 210 V

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.4637 € *

Standard delivery time from the manufacturer is: 20 Weeks

Total Price:

1,463.70 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Technical specifications

Filter	Property	Value
	Design	radial
	Varistor Voltage Type	330 V
	max. Surge current, transient (8/20 Âµs)	15000 A
	Rated voltage (DC)	270 V
	Rated voltage (AC)	210 V
	Tolerance	±10 %
	Power dissipation	1.2 W
	Energy absorption	165 J
	Grid	20 mm
	min. operating temperature	-40 °C
	max. operating temperature	105 °C
	Standard number	UL, CSA, VDE, IEC
