B72220P3351K101 | TDK (EPCOS)

Name: Varistor, radial, VV 560 V, 12000 A, 460 V (DC), 350 V (AC), ±10 %, 1 VA (AC), 335 J, B72220P3351K101
Brand: TDK (EPCOS)
SKU: 82E6353
Availability: InStock

Varistor, radial, VV 560 V, 12000 A, 460 V (DC), 350 V (AC), ±10 %, 1 VA (AC), 335 J, B72220P3351K101

Order No.: 82E6353

EAN: 4099879993434

MPN:

B72220P3351K101

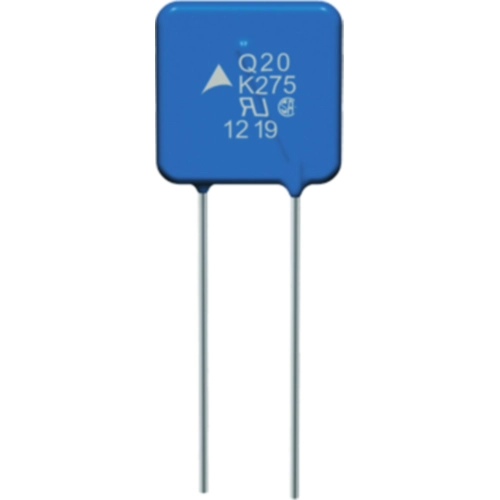

Image may differ

Key Specification:

Design radial

Varistor Voltage Type 560 V

max. Surge current, transient (8/20 Âµs) 12000 A

Rated voltage (DC) 460 V

Rated voltage (AC) 350 V

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.2852 € *

Standard delivery time from the manufacturer is: 20 Weeks

Total Price:

1,927.80 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Technical specifications

Filter	Property	Value
	Design	radial
	Varistor Voltage Type	560 V
	max. Surge current, transient (8/20 Âµs)	12000 A
	Rated voltage (DC)	460 V
	Rated voltage (AC)	350 V
	Tolerance	±10 %
	Power dissipation	1 W
	Energy absorption	335 J
	Grid	20 mm
	min. operating temperature	-40 °C
	max. operating temperature	105 °C
	Standard number	UL, CSA, VDE, IEC
