B72214T2321K105 | TDK (EPCOS)
Varistor, radial, VV 510 V, 6000 A, 420 V (DC), 320 V (AC), ±10 %, 0.6 VA (AC), 136 J, B72214T2321K105
Order No.: 82E6339
EAN: 4099879993335
MPN:
B72214T2321K105
Unit Price (€ / pc.)
1.0829 € *
Standard delivery time from the manufacturer is: 20 Weeks

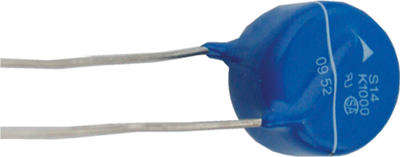

Metal oxide varistor, B72214T2321K105, EPCOS
Features
- Self-protected under abnormal overvoltage conditions
Applications
- Houshold appliances
- Power supply units
- Inverters in solar power systems
- Lighting applications
- Communication and data systems
- Transient voltage surge suppressors (TVSS)
- Electronic metering
Technical specifications
| Design | radial | |
| Varistor Voltage Type | 510 V | |
| max. Surge current, transient (8/20 µs) | 6000 A | |
| Rated voltage (DC) | 420 V | |
| Rated voltage (AC) | 320 V | |
| Tolerance | ±10 % | |
| Power dissipation | 0.6 W | |
| Energy absorption | 136 J | |
| Grid | 14 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 105 °C | |
| Standard number | UL, CSA, VDE, IEC |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85332100 |
| Original Packaging | Bulk with 980 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
