B72210S2231K101 | TDK (EPCOS)

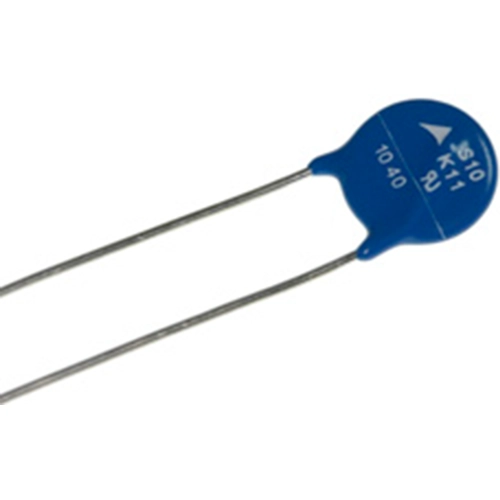

Name: Varistor, radial, VV 360 V, 3500 A, 300 V (DC), 230 V (AC), ±10 %, 0.4 VA (AC), 45 J, B72210S2231K101
Brand: TDK (EPCOS)
SKU: 82E6170
Availability: OutOfStock

Varistor, radial, VV 360 V, 3500 A, 300 V (DC), 230 V (AC), ±10 %, 0.4 VA (AC), 45 J, B72210S2231K101

Order No.: 82E6170

EAN: 4099879992000

MPN:

B72210S2231K101

Image may differ

Key Specification:

Design radial

Varistor Voltage Type 360 V

max. Surge current, transient (8/20 Âµs) 3500 A

Rated voltage (DC) 300 V

Rated voltage (AC) 230 V

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.3808 € *

Standard delivery time from the manufacturer is: 20 Weeks

Total Price:

1,142.40 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Technical specifications

Filter	Property	Value
	Design	radial
	Varistor Voltage Type	360 V
	max. Surge current, transient (8/20 Âµs)	3500 A
	Rated voltage (DC)	300 V
	Rated voltage (AC)	230 V
	Tolerance	±10 %
	Power dissipation	0.4 W
	Energy absorption	45 J
	Grid	10 mm
	min. operating temperature	-40 °C
	max. operating temperature	105 °C
	Standard number	UL, CSA, VDE, CQC, IEC
