B72207S0461K151 | TDK (EPCOS)

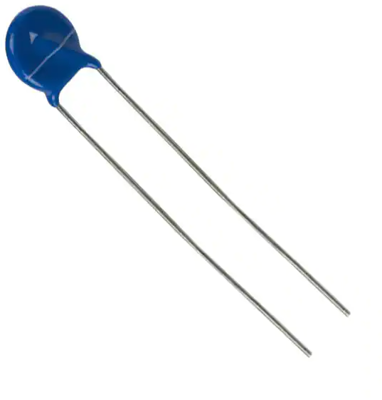

Name: Varistor, radial, VV 750 V, 1200 A, 615 V (DC), 460 V (AC), ±10 %, 0.25 VA (AC), 36 J, B72207S0461K151
Brand: TDK (EPCOS)
SKU: 82E6051
Availability: InStock

Varistor, radial, VV 750 V, 1200 A, 615 V (DC), 460 V (AC), ±10 %, 0.25 VA (AC), 36 J, B72207S0461K151

Order No.: 82E6051

EAN: 4099879990983

MPN:

B72207S0461K151

B72207S461K151

Image may differ

Key Specification:

Design radial

Varistor Voltage Type 750 V

max. Surge current, transient (8/20 Âµs) 1200 A

Rated voltage (DC) 615 V

Rated voltage (AC) 460 V

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.357 € *

Standard delivery time from the manufacturer is: 20 Weeks

Total Price:

1,785.00 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Technical specifications

Filter	Property	Value
	Design	radial
	Varistor Voltage Type	750 V
	max. Surge current, transient (8/20 Âµs)	1200 A
	Rated voltage (DC)	615 V
	Rated voltage (AC)	460 V
	Tolerance	±10 %
	Power dissipation	0.25 W
	Energy absorption	36 J
	Grid	7 mm
	min. operating temperature	-40 °C
	max. operating temperature	105 °C
	Standard number	UL, CSA, VDE, CECC
