B72207S0441K311 | TDK (EPCOS)

Name: Varistor, radial, VV 715 V, 1200 A, 585 V (DC), 440 V (AC), ±10 %, 0.25 VA (AC), 34 J, B72207S0441K311
Brand: TDK (EPCOS)
SKU: 82E6050
Availability: InStock

Varistor, radial, VV 715 V, 1200 A, 585 V (DC), 440 V (AC), ±10 %, 0.25 VA (AC), 34 J, B72207S0441K311

Order No.: 82E6050

EAN: 4099879990976

MPN:

B72207S0441K311

B72207S441K311

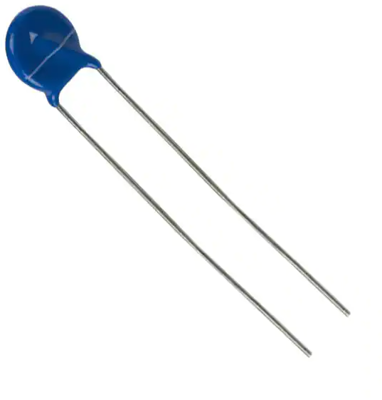

Image may differ

Key Specification:

Design radial

Varistor Voltage Type 715 V

max. Surge current, transient (8/20 Âµs) 1200 A

Rated voltage (DC) 585 V

Rated voltage (AC) 440 V

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.357 € *

Standard delivery time from the manufacturer is: 20 Weeks

Total Price:

1,785.00 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Technical specifications

Filter	Property	Value
	Design	radial
	Varistor Voltage Type	715 V
	max. Surge current, transient (8/20 Âµs)	1200 A
	Rated voltage (DC)	585 V
	Rated voltage (AC)	440 V
	Tolerance	±10 %
	Power dissipation	0.25 W
	Energy absorption	34 J
	Grid	7 mm
	min. operating temperature	-40 °C
	max. operating temperature	105 °C
	Standard number	UL, CSA, VDE, CECC
