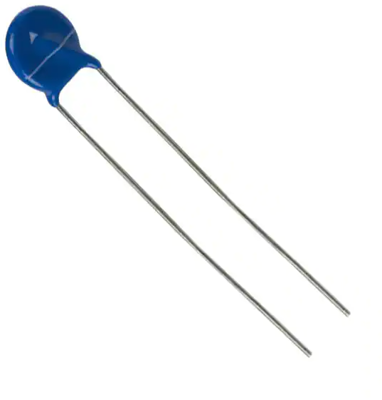

B72207S0271K161 | TDK (EPCOS)

Name: Varistor, radial, VV 430 V, 1200 A, 350 V (DC), 275 V (AC), ±10 %, 0.25 VA (AC), 21 J, B72207S0271K161
Brand: TDK (EPCOS)
SKU: 82E6031
Availability: InStock

Varistor, radial, VV 430 V, 1200 A, 350 V (DC), 275 V (AC), ±10 %, 0.25 VA (AC), 21 J, B72207S0271K161

Order No.: 82E6031

EAN: 4099879990853

MPN:

B72207S0271K161

B72207S271K161

Image may differ

Key Specification:

Design radial

Varistor Voltage Type 430 V

max. Surge current, transient (8/20 Âµs) 1200 A

Rated voltage (DC) 350 V

Rated voltage (AC) 275 V

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.2499 € *

Standard delivery time from the manufacturer is: 20 Weeks

Total Price:

1,499.40 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Technical specifications

Filter	Property	Value
	Design	radial
	Varistor Voltage Type	430 V
	max. Surge current, transient (8/20 Âµs)	1200 A
	Rated voltage (DC)	350 V
	Rated voltage (AC)	275 V
	Tolerance	±10 %
	Power dissipation	0.25 W
	Energy absorption	21 J
	Grid	7 mm
	min. operating temperature	-40 °C
	max. operating temperature	105 °C
	Standard number	UL, CSA, VDE, CQC, IEC
