B72207S0131K101 | TDK (EPCOS)
Varistor, radial, VV 205 V, 1200 A, 170 V (DC), 130 V (AC), ±10 %, 0.25 VA (AC), 9.5 J, B72207S0131K101
Order No.: 82E2227
EAN: 4099879987952
MPN:
B72207S0131K101
B72207S131K101
Unit Price (€ / pc.)
0.2261 € *
Available: 0 pcs.
Leadtime: 20 Weeks **

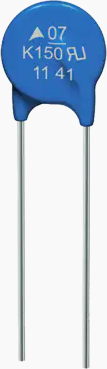

Metal oxide varistors (VDRs), type TDK/Epcos S07 B72207..K101.
Disk version
Technical specifications
| Design | radial | |
| Varistor Voltage Type | 205 V | |
| max. Surge current, transient (8/20 µs) | 1200 A | |
| Rated voltage (DC) | 170 V | |
| Rated voltage (AC) | 130 V | |
| Tolerance | ±10 % | |
| Power dissipation | 0.25 W | |
| Energy absorption | 9.5 J | |
| Grid | 5 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Standard number | UL, CSA, SEV, VDE, CECC, CQC, IEC |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85332100 |
| Original Packaging | Bulk with 1,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
