B59960C0080A070 | TDK (EPCOS)
PTC thermistor, 5.6 Ω, 80 °C, ±25 %, radial, B59960C0080A070
Unit Price (€ / pc.)
1.8088 € *
Available: 2,009 pcs.
Total Price:
18.09 € *
Price list
Quantity
Price per unit*
10 pcs.
1.8088 €
50 pcs.
1.5827 €
500 pcs.
1.2614 €
1000 pcs.
1.1781 €
2000 pcs.
1.0948 €
*incl. VAT plus shipping costs
Subject to prior sale
PTC thermistors, type TDK/Epcos B599..C80A70.
Short response time and reduced component temperature at maximum operating voltage. Suited for use as surge current and short-circuit protection element. Coated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 5.6 Ω | |
| Response temperature | 80 °C | |
| Tolerance | ±25 % | |

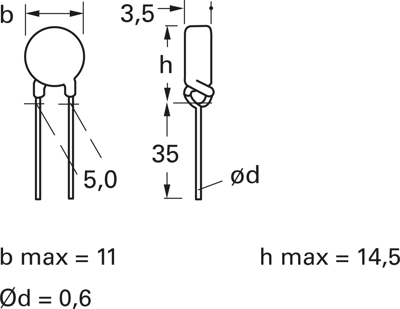

| Design | radial | |
| Rated voltage (DC) | 80 V | |
| Rated voltage (AC) | 80 V | |
| Rated current | 130 A | |
| switching current | 4.3 A | |
| Assembly | THT | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Original Packaging | Bulk with 500 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
