B59771B0120A070 | TDK (EPCOS)

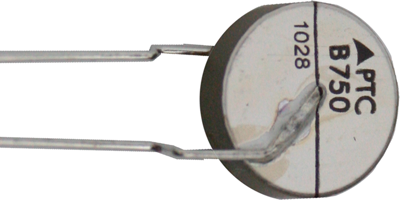

PTC thermistor, 120 Ω, 120 °C, ±25 %, radial, B59771B0120A070
Unit Price (€ / pc.)
1.3328 € *
Standard delivery time from the manufacturer is: 28 Weeks
Total Price:
1,332.80 € *
Price list
Quantity
Price per unit*
1000 pcs.
1.3328 €
5000 pcs.
1.2257 €
*incl. VAT plus shipping costs
Subject to prior sale
PTC thermistors, type TDK/Epcos B597..B120A70.
Suitable for surge current protection and short-circuit protection. Not coated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 120 Ω | |
| Response temperature | 120 °C | |
| Tolerance | ±25 % | |

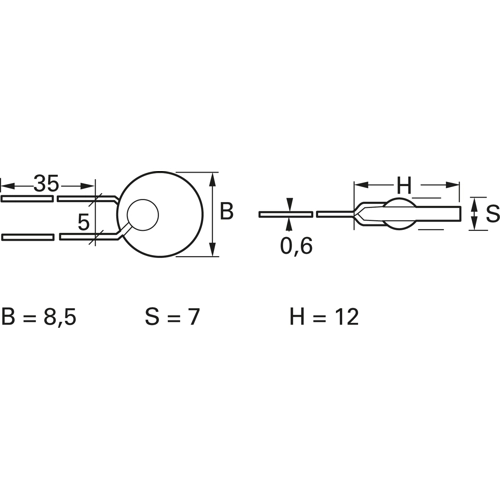

| Design | radial | |
| Rated voltage (DC) | 420 V | |
| Rated voltage (AC) | 420 V | |
| Rated current | 49 A | |
| switching current | 1.4 A | |
| Assembly | THT | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 60 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85332100 |
| Original Packaging | Bulk with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
