B59758B0110A070 | TDK (EPCOS)

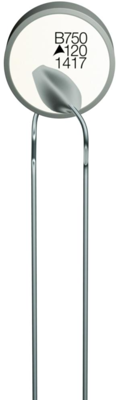

PTC thermistor, 7.5 kΩ, 110 °C, ±33 %, radial, B59758B0110A070
Unit Price (€ / pc.)
1.8445 € *
Standard delivery time from the manufacturer is: 17 Weeks
PTC Thermistor, B59758B0110A070, EPCOS
Features
- Lead-free terminals
- Self-protecting in case of malfunction of short-circuit relay or internal short circuit of capacitor
- IECQ certificate (file number 101-QA-13) for ICL applications and for overcurrent protection selected types (file number 101-QA-2)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Response temperature | 110 °C | |
| Design | radial | |
| max. operating temperature | 60 °C | |
| Assembly | THT | |
| min. operating temperature | 0 °C | |
| switching current | 8 mA | |
| Tolerance | ±33 % | |
| ohmic resistance | 7.5 kΩ |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | AT |
| Customs tariff number | 85332100 |
| Original Packaging | Bulk with 500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
