B59707A0120A062 | TDK (EPCOS)

PTC thermistor, 125 Ω, 120 °C, ±25 %, SMD 1210, B59707A0120A062

Order No.: 82E1180
EAN: 4099879981035
MPN:
B59707A0120A062
B59707A120A62
Series: B59x

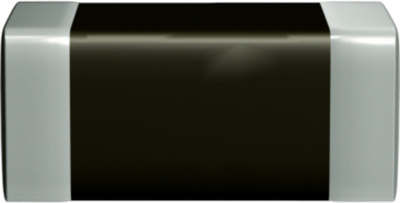

B59707A0120A062 TDK (EPCOS) PTC Thermistors Image 1
B59707A0120A062 TDK (EPCOS) PTC Thermistors Image 2
Image may differ
Unit Price (€ / pc.)
0.8187 € *
Available: 4,862 pcs.
Total Price:
0.82 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8187 €
10 pcs.
0.7485 €
100 pcs.
0.6212 €
500 pcs.
0.5867 €
*incl. VAT plus shipping costs
Subject to prior sale

SMD PTC thermistors, type TDK/Epcos B59..A62.

Suitable for surge current protection / switching delay applications and reflow soldering. High-speed response

Operating voltage 80 V, type B59..A62.

Technical specifications
Filter Property Value
ohmic resistance 125 Ω
Response temperature 120 °C
Tolerance ±25 %

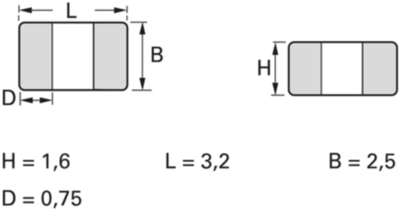

Design SMD 1210
Rated voltage (DC) 80 V
Rated voltage (AC) 80 V
Rated current 50 A
switching current 300 mA
Assembly SMD
min. operating temperature -40 °C
max. operating temperature 125 °C
Logistics
Property Value
Country of origin CZ
Original Packaging Reel with 2,000 pieces
Customs tariff number 85332100
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
