B59623A0090A062 | TDK (EPCOS)
PTC thermistor, 470 Ω, 90 °C, ±25 %, SMD 0603, B59623A0090A062
Order No.: 82E1183
EAN: 4099879981066
MPN:
B59623A0090A062
B59623A90A62
Unit Price (€ / pc.)
0.6783 € *
Standard delivery time from the manufacturer is: 18 Weeks
SMD PTC thermistors, type TDK/Epcos B59..A62.
Suitable for surge current protection / switching delay applications and reflow soldering. High-speed response
Operating voltage 80 V, type B59..A62.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 470 Ω | |
| Response temperature | 90 °C | |
| Tolerance | ±25 % | |

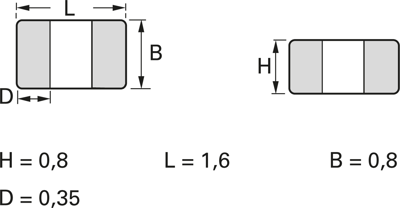

| Design | SMD 0603 | |
| Rated voltage (DC) | 80 V | |
| Rated voltage (AC) | 80 V | |
| Rated current | 15 A | |
| switching current | 150 mA | |
| Assembly | SMD | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Original Packaging | Reel with 4,000 pieces |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
