B59606A0110A062 | TDK (EPCOS)
PTC thermistor, 27 Ω, 110 °C, ±25 %, SMD 1210, B59606A0110A062
Unit Price (€ / pc.)
1.8088 € *
Available: 2,249 pcs.
Total Price:
1.81 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8088 €
10 pcs.
1.1305 €
50 pcs.
0.9996 €
250 pcs.
0.8568 €
2000 pcs.
0.6783 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD PTC thermistors, type TDK/Epcos B59..A62.
Suitable for surge current protection / switching delay applications and reflow soldering. High-speed response
Operating voltage 30 V, type B5960..A62.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 27 Ω | |
| Response temperature | 110 °C | |
| Tolerance | ±25 % | |

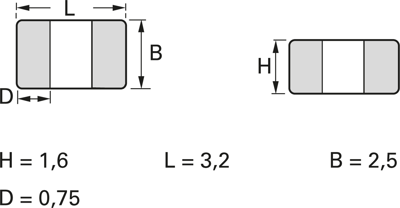

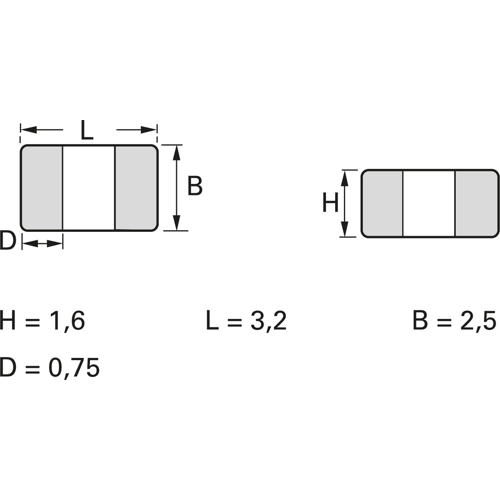

| Design | SMD 1210 | |
| Rated voltage (DC) | 30 V | |
| Rated voltage (AC) | 30 V | |
| Rated current | 90 A | |
| switching current | 500 mA | |
| Assembly | SMD | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Original Packaging | Reel with 2,000 pieces |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
