B59301P1120A062 | TDK (EPCOS)
PTC thermistor, 3.1 Ω, 120 °C, ±25 %, SMD 4032, B59301P1120A062
Unit Price (€ / pc.)
1.3447 € *
Standard delivery time from the manufacturer is: 18 Weeks
SMD PTC thermistors, type TDK/Epcos B59.
In plastic mold, suitable for overload and short-circuit protection, with tinned leads for flow and reflow soldering
Operating voltage 30 V/60 °C and reference temperature of 120 °C, type B59101../B59201../B59301.
Technical specifications
| ohmic resistance | 3.1 Ω | |
| Response temperature | 120 °C | |
| Tolerance | ±25 % | |

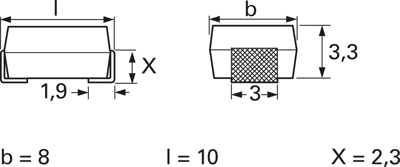

| Design | SMD 4032 | |
| Rated voltage (DC) | 30 V | |
| Rated voltage (AC) | 30 V | |
| Rated current | 310 A | |
| switching current | 640 mA | |
| Assembly | SMD | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Country of origin | ID |
| Customs tariff number | 85332100 |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
