B57861S0302J040 | TDK (EPCOS)

NTC, 3 kΩ, ±5 %, 0.06 W, 3988 K, 0.002 W/K, 15 s, THT, B57861S0302J040

Order No.: 82E5559
EAN: 4099879979988
MPN:
B57861S0302J040
B57861S302J40
Series: B57861
B57861S0302J040 TDK (EPCOS) NTC Thermistors

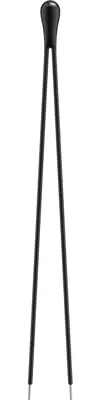

Image may differ
Unit Price (€ / pc.)
1.0115 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
2,023.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
2000 pcs.
1.0115 €

NTC Thermistor, B57861S0302J040, EPCOS

Features

  • Uni curve sensor
  • Short response time
  • High temperature accuracy between 0 °C and 70 °C
  • Excellent long-term stability
  • Epoxy resin encapsulation
  • PTFE-insulated leads of silver-plated nickel wire, AWG 30
  • UL approval (E69802)
Technical specifications
Tolerance ±5 %
ohmic resistance 3 kΩ
Power 0.06 W
min. operating temperature -55 °C
Assembly THT
B-value at 25/100 °C 3988 K
Thermal conductivity (Air) 0.002 W/K
Cooling time constant (air) 15 s
max. operating temperature 155 °C
Logistics
Customs tariff number 85332100
Original Packaging Bulk with 1,000 pieces
Country of origin ID
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
