B57703M0103A017 | TDK (EPCOS)
NTC, 10 kΩ, ±2 %, 0.15 W, 3988 K, 0.003 W/K, 50 s, screw mounting, B57703M0103A017
Unit Price (€ / pc.)
7.7231 € *
Available: 4 pcs.
Total Price:
7.72 € *
Price list
Quantity
Price per unit*
1 pcs.
7.7231 €
10 pcs.
6.7830 €
200 pcs.
5.9619 €
400 pcs.
5.7358 €
800 pcs.
5.4978 €
*incl. VAT plus shipping costs
Subject to prior sale

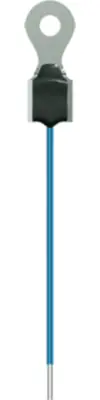

NTC Thermistor, B57703M0103A017, EPCOS
Features
- Uni curve sensor
- Short response time
- High temperature accuracy between 0 °C and 70 °C
- Excellent long-term stability
- Epoxy resin encapsulation
- PTFE-insulated leads of silver-plated nickel wire, AWG 30
- UL approval (E69802)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Thermal conductivity (Air) | 0.003 W/K | |
| Tolerance | ±2 % | |
| ohmic resistance | 10 kΩ | |
| Power | 0.15 W | |
| Assembly | screw mounting | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| B-value at 25/100 °C | 3988 K | |
| Cooling time constant (air) | 50 s |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Country of origin | ID |
| Original Packaging | Bulk with 200 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
