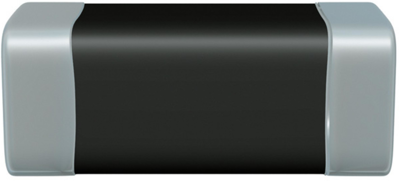

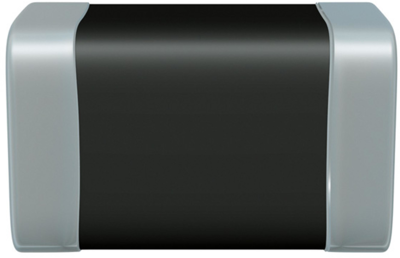

B57620C5103J062 | TDK (EPCOS)
NTC, 10 kΩ, ±5 %, 0.21 W, 3730 K, 0.004 W/K, 10 s, SMD 0805, B57620C5103J062
Unit Price (€ / pc.)
0.2142 € *
Standard delivery time from the manufacturer is: On Request
NTC Thermistor, B57620C5103J062, EPCOS
Features
- Uni curve sensor
- Short response time
- High temperature accuracy between 0 °C and 70 °C
- Excellent long-term stability
- Epoxy resin encapsulation
- PTFE-insulated leads of silver-plated nickel wire, AWG 30
- UL approval (E69802)
Technical specifications
| max. operating temperature | 125 °C | |
| Tolerance | ±5 % | |
| Cooling time constant (air) | 10 s | |
| Thermal conductivity (Air) | 0.004 W/K | |
| min. operating temperature | -55 °C | |
| Assembly | SMD 0805 | |
| Power | 0.21 W | |
| B-value at 25/100 °C | 3730 K | |
| ohmic resistance | 10 kΩ |
Download
Logistics
| Customs tariff number | 85332100 |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
