B57227K0333A001 | TDK (EPCOS)
NTC, 1.8 kΩ, ±10 %, 0.2 W, 4300 K, 0.005 W/K, 30 s, clamp mounting, B57227K0333A001
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
9.0321 € *
Available: 246 pcs.
Total Price:
9.03 € *
Price list
Quantity
Price per unit*
1 pcs.
9.0321 €
10 pcs.
7.9492 €
100 pcs.
6.9734 €
200 pcs.
6.6997 €
400 pcs.
6.4260 €
*incl. VAT plus shipping costs
Subject to prior sale
NTC thermistors, type TDK/Epcos B57227K333A1.

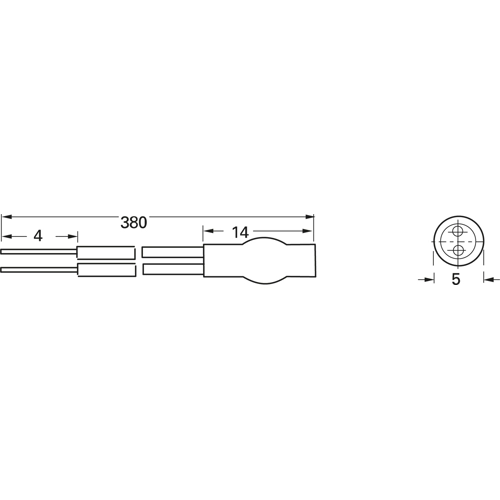

Suitable for monitoring motors, machinery and enclosure temperatures. Approx. 360 mm stranded connecting wires AWG 26/PTFE; Design: NTC thermistor disc, coated and insulated with heatshrink tubing. Operating temperatures: –55 to +155 °C. Rated temperature: +100 °C. Power at +25 °C: max. 200 mW. Resistance tolerance: ±10 %. Thermal conductivity (air): approx. 5.0 mW/K. Cooling time constant (air): approx. 30 s. Insulation resistance: 100 Mohm. Test voltage (1.0 s): 2.5 kV.
Technical attributes (type, rated resistance at +100 °C/+25 °C, B-value at 25/100 °C): B57227K333A1, 1K8/32K762, 4300K ±3.0 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 1.8 kΩ | |
| Tolerance | ±10 % | |
| Power | 0.2 W | |
| B-value at 25/100 °C | 4300 K | |
| Thermal conductivity (Air) | 0.005 W/K | |
| Cooling time constant (air) | 30 s | |
| Assembly | clamp mounting | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 155 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 100 pieces |
| Country of origin | ID |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
